Máy đo chất lượng không khí CP502

Product Specifications
Display method: 2.8” LCD screen display, 320 x 240 pixels
Atmospheric pressure: 86Kpa - 106Kpa
Detection method for PM: Laser Scattering
PM2.5 Sensor technolology : Laser Scattering
HCHO sensor : Electrochemistry
TVOC sensor :  Semiconductor
Temperature and Humidity sensor
Sampling time: 1.5 seconds
Product Size: 155 x 87 x 35mm
Detection temperature: -10°C to 50°C; 14°F to 122°F
Relative humidity: 20% - 85%
Storage temperature: -10°C to 60°C; 14°F to 140°F
Concentration unit for PM2.5 : ug/m³
Concentration unit for HCHO and TVOC: mg/m³
Power source: Lithium battery with 1500 mAh capacity; 5V DC power charging via micro USB port
Product weight: 150g

Product Description

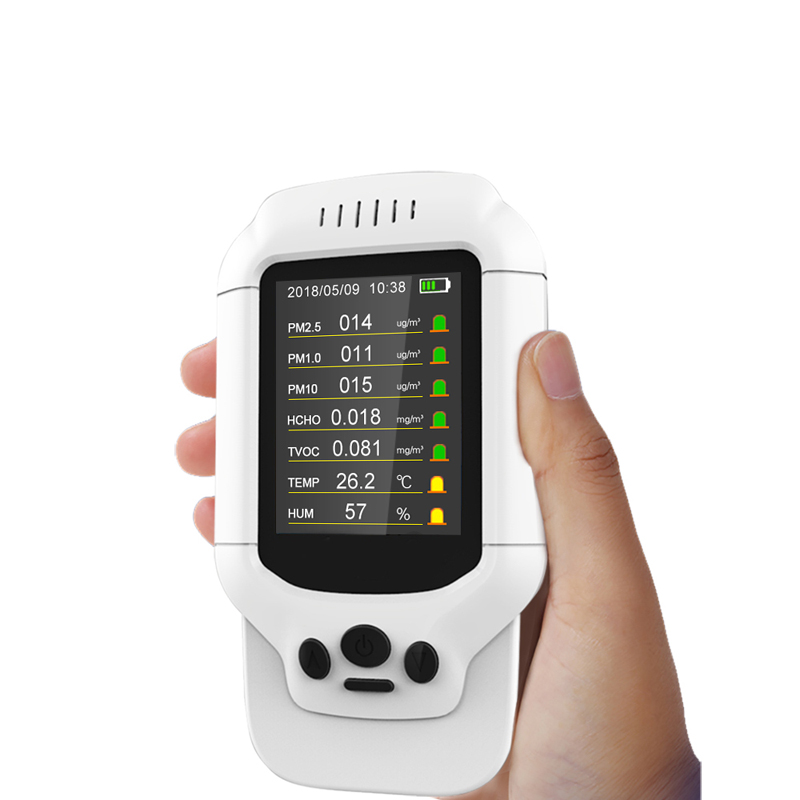

This product is a multifunctional air quality detector that detects Formaldehyde (HCHO), Total Volatile Organic Compounds (TVOC), Particulate Matter <2.5 micron-sized particles (PM2.5/1.0/10), Temperature, and Humidity with clock and record function. As a scientific air quality detection device, it combines multiple air sensors with a built-in fan to allow real-time monitoring of Formaldehyde (HCHO), total volatile organic compounds (TVOC), PM2.5/1.0/10, temperature, and humidity on its digital LCD display.

Features:
-2.8" color liquid crystal display (LCD), 320x240 pixels
-Test variables:PM2.5/1.0/10, formaldehyde, TVOC, temperature, humidity
-Large 1500mAh capacity Lithium battery
-On-board fan to draw in ambient air for more accurate real-time results
-5V Micro USB charging
-Low battery warning

TVOC ideal range: <= 0.6 mg/m3 (0.45 ppm/m3)
The formaldehyde alarm threshold is 0.1, If levels of HCHO exceed the set formaldehyde alarm threshold, the device will alarm with short beeps.

About Charging
When low battery icon is displayed, the device needs to be charged. Insert the included or another compatible micro USB charging cable into the device. Attach the other end to a USB DC charger (such as a smartphone charger) that outputs DC 5V at >=1000mA. Fully charge for at least 2-3 hours before use. Avoid charging with a USB computer port which only outputs 500mA.

Product List
Air Quality monitor   x 1
Micro USB charging cable x 1
Product Manual    x 1
